Acoustic Panels for Studio
Recording rooms, podcast studios, control rooms, and rehearsal spaces need acoustic treatment planned around the recording or listening position, the room’s reflective surfaces, and the areas available for panel installation. Where the main objective is to reduce internal reflections and reverberation, polyester fiber acoustic panels offer a wall and ceiling treatment option with a visible finish.
Insulvora supplies PET acoustic panels for studio walls and ceilings. Panel thickness, finished dimensions, colors, and surface finishes can be reviewed against the requirements of the installation. If the project also needs to block outside noise or sound transmission between rooms, that requires a separate sound-isolation assembly.
Treatment Priorities Across Studio Spaces
Choosing acoustic panels for studio spaces starts with the relationship between sound sources, microphones or monitoring positions, and nearby hard surfaces—not floor area alone. Two similarly sized rooms may need different treatment for vocals and monitoring.
In control rooms, reflections from sidewalls and ceilings can reach the listening position shortly after the direct sound from the monitors. These early reflections can interfere with stereo imaging and listening decisions, making the relevant reflection points a more useful starting place than uniform wall coverage. Podcast and vocal rooms place greater emphasis on reflections picked up by the microphone and repeated reflections between close, hard surfaces.
| Studio space | Main treatment direction | Key conditions |
|---|---|---|
| Podcast / speech recording room | Treat reflective wall areas around the recording position to reduce reflected sound reaching the microphone | Microphone direction, speaking position, adjacent hard surfaces |
| Control / editing room | Prioritize sidewall early-reflection points at the listening position, with ceiling treatment where needed | Monitor layout, listening position, left-right reflection conditions |
| Vocal booth | Distribute treatment around the recording position rather than treating only one wall | Room dimensions, sound-source position, existing absorptive surfaces |
| Rehearsal room | Place wall or ceiling absorption according to the distribution of instruments and other sound sources | Equipment layout, coverage area, panel exposure to contact or impact |
More acoustic panels for studio interiors do not automatically mean better treatment. Furniture, soft finishes, existing absorbers, and equipment all affect the amount of additional coverage needed. In control rooms, an uneven left-right arrangement can create inconsistent reflection conditions at the listening position. In smaller vocal booths, treating only one wall may leave strong reflections between other hard surfaces.
Polyester Fiber Panels and Product Configuration

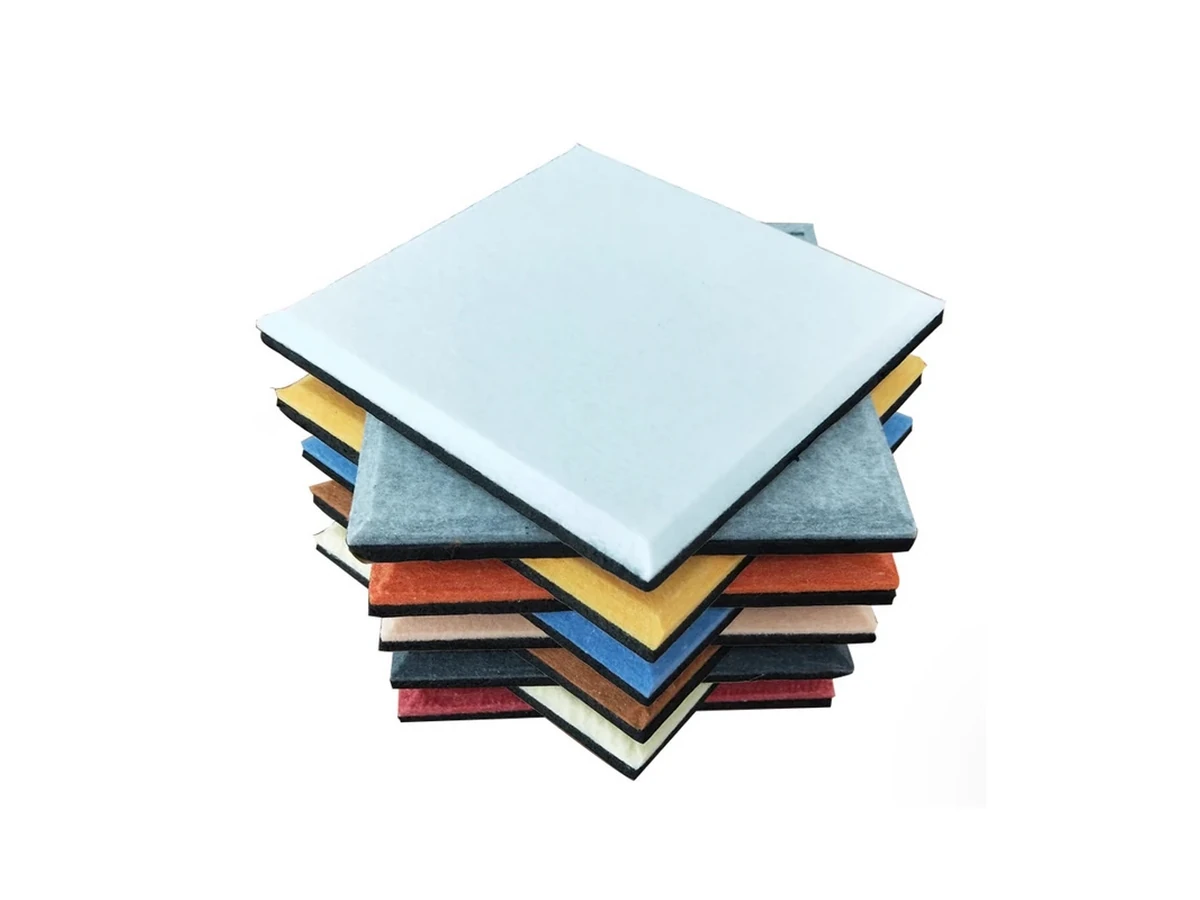

For acoustic panels for studio wall and ceiling treatment, Insulvora offers its Polyester Fiber Acoustic Panel . PET panels can be incorporated into visible interior surfaces where acoustic absorption, panel layout, and appearance all matter. The appropriate configuration depends on the area to be covered and the way the panels will be installed.
On larger walls, finished panel length, width, and edge details influence the layout, joint locations, and perimeter finishing. On smaller wall sections interrupted by equipment, panel dimensions need to work around usable mounting areas. Ceiling applications may use the same type of panel, but the fixing method must be suitable for the overhead substrate and installation arrangement.
Insulvora can review thickness, finished length and width, color, surface treatment, and edge options for the selected PET panel. Dimensions affect panel layout; finishes affect the visible interior; thickness and installation depth matter to acoustic performance. Different combinations cannot be assumed to provide identical absorption.
Where acoustic panels for studio projects must meet an NRC or other absorption requirement, the selected product needs supporting test information relevant to its configuration and mounting conditions. Test results for one backing air gap or mounting assembly do not automatically apply to another.
Projects with specific fire-performance requirements can also be reviewed against Insulvora’s Fire Retardant Polyester Acoustic Panel . The required classification and test documents must correspond to the actual panel specification; results for one thickness or configuration should not be extended to another without supporting evidence.
Installation Conditions and Acoustic Limits
Installing acoustic panels for studio rooms requires coordination with monitors, microphone stands, wall-mounted equipment, cable routes, doors, and ventilation openings. Treatment should reach the relevant reflective areas without obstructing equipment operation, airflow, or access for maintenance.
Direct wall fixing, an air gap behind the panel, and suspended ceiling installation create different mounting conditions and may lead to different absorption performance. If the intended installation differs from the assembly used in testing, that difference matters when interpreting the data. Fixings must also suit the substrate and panel form. Further installation details are covered in Acoustic Wall Panel Installation .
Standard PET surface panels primarily address room reflections and reverberation; they are not a substitute for treatment across every frequency range. Low-frequency problems may require greater effective absorption depth, different assemblies, or dedicated bass treatment. A room can still have uneven bass response even when much of its wall area has absorptive panels.
Where the objective is to reduce noise entering from outside or sound passing into adjacent rooms, surface absorption cannot replace the sound-isolation assembly. Wall and ceiling construction, seals, and junction details need separate consideration. See Acoustic Wall Insulation and Acoustic Ceiling Insulation for those applications. For a comparison of PET panels and acoustic foam, see Acoustic Panels vs Foam .
Studio Acoustic Panel Inquiry
Insulvora supplies polyester fiber acoustic panels for studio wall and ceiling treatment. Contact us to discuss panel specifications, project requirements, and a quotation.
